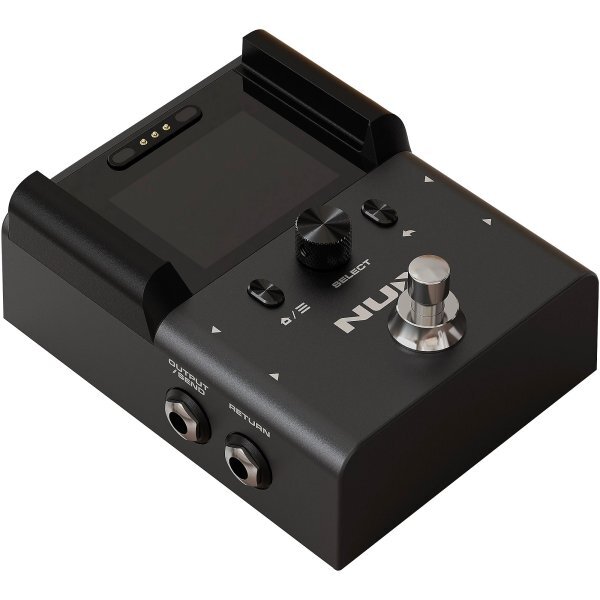

NUX Professional 2.4GHz Wireless System Pedal - Black
|
|
|
|
|
| Quantity: | |
|
|
|
Add to Cart or call: (403) 2788844 | |
;){kind=link}
NUX B-8 is a redefined wireless system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality audio transmitting.
Operating Frequency Band 2400-2483.5MHz
Audio Quality 24bit/48kHz
Frequency Response 20Hz-20kHz
Latency 2.5ms(best performance setting)-8.7ms(safety mode)
Input Impedance 1 MO
Maximum Input Level 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
THD+N 0.01% 1kHz, typical
Dynamic Range 122dB, A-weighted(OUTPUT/SEND)
Output level Adjustment Range mute -64dB~0dB
Auto-sleep Mode N/A
Built-in Battery Capacity 3.7V/500mAh Rechargeable Li-polymer (Transmitter)
TX Battery Life up to 6.5 hours
Power Requirements 7V to 12V DC, 500mA min, negative tip power supplies(Receiver)
Operation Range Up to 50 m (165 feet) maximum
TX dimesions 72.5mm*49.3mm*23mm (L*W*H)
TX weight 63g
RX dimensions 122*95*60mm (L*W*H)
RX weight 500g
