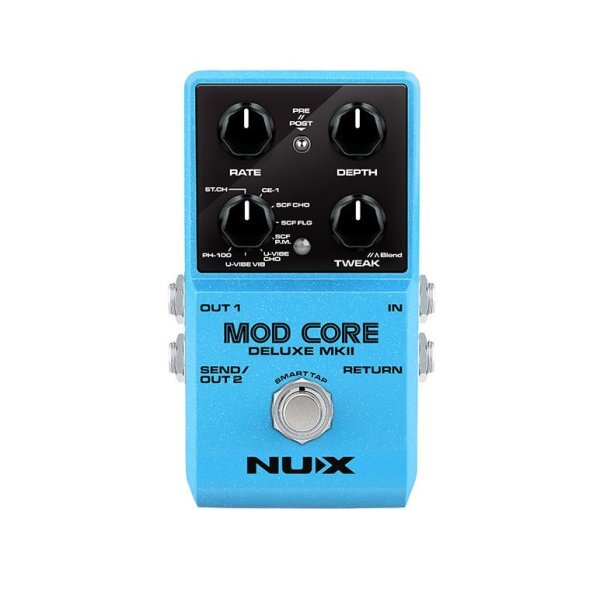

NUX Modulation Pedal w/ 8 modes

8 modulation types in a compact enclosure.

ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB and PH-100.

ST.CH is based on MXR® Stereo Chorus.

CE-1 is based on BOSS® CE-1.

SCF is based on TC Electronic® SCF Stereo Chorus Flanger.

U-VIBE is based on Dunlop® UV-1 Uni-Vibe Chorus / Vibrato.

PH-100 is based on MXR® Phase 100.

Normal routing(mono out or stereo out) and advanced routing(PRE, // , POST).

Parallel routing offers Blend parameter.(Alt mode, Tweak becomes Blend parameter.)

Smart Tap Tempo. (50~200 BPM)

Low power consumption. (less than 120mA)

Analog dry signal for low noise and zero latency

Weight: 270g

Input Impedance: 1MO

Output Impedance: 1kO

Dynamic Range: 104 dB

DSP Processing: 48KHz / 32-bit

A/D D/A Sampling Rate: 48KHz / 24-bit

Power: 9V DC(Negative tip, Optional ACD-006A adapter)

Current Draw:less than 120mA

Dimensions: 122(L) X 72(W) X 47(H)mm
