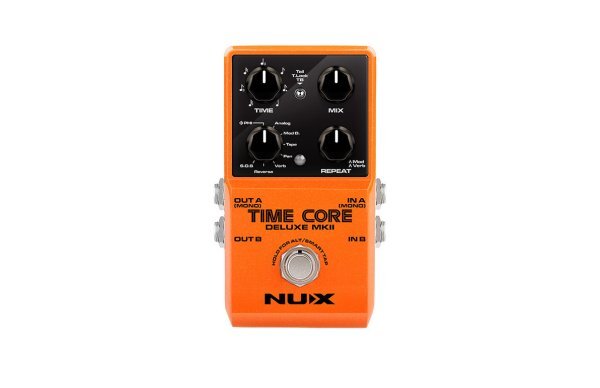

NUX Delay Guitar Effects Pedal With 7 Delay Types

7 delay types in a compact enclosure.

FPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head. (80ms~1000ms)

Analog Delay: Warm sound with natural treble decay. (40ms~403ms)

Modulation Delay: Lush and rich chorus with digital delay. (20ms~1500ms)

Tape Echo: High-frequency saturation and low-end decay. (55ms~552ms)

Pan Delay: Creative natural stereo feeling. (80ms~1000ms)

Verb Delay: Plate Reverb algorithm with Digital Delay to create an ambient atmosphere. (80ms~1000ms)

Reverse Delay: Inspire guitarists for new ideas. (320ms~1240ms)

S.O.S: 40 seconds stereo phrase loop.

Sub-division with Smart Tap Tempo. (Maximum: 1580ms)

True-bypass or Buffer-bypass(Tails).

Supports Stereo.

Kill Dry.

Low power consumption. (less than 120mA)

Analog dry signal for low noise and zero latency.

Input Impedance: 1MO

Output Impedance: 1kO

Dynamic Range: 104 dB

DSP Processing: 48KHz / 32-bit

A/D D/A Sampling Rate: 48KHz / 24-bit

Power: 9V DC(Negative tip, Optional ACD-006A adapter)

Current Draw: less than 120mA

Dimensions: 122(L) X 72(W) X 47(H)mm

Weight: 270g
