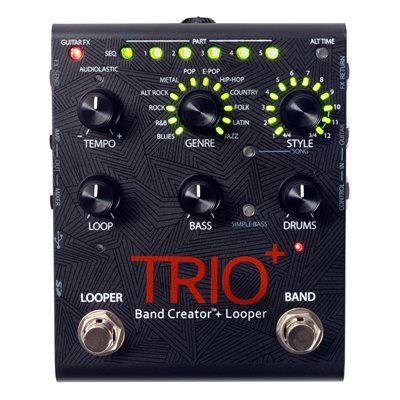

Digitech TRIO+ Band Creator and Looper Pedal
|
|
The TRIO+ is a simple-to-use guitar pedal that listens to the way you play and automatically generates bass and drum parts that match your song.
General Specifications:
- Controls Tempo, Genre, Style, Loop, Bass, Drums, Headphone Volume
- Backlit Buttons Guitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass
- Footswitches Looper, Band
- LEDs Genre types, Style 1–12, Audiolastic, Looper, Band
- Jacks Power, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone
- Other Mini USB port, microSD card slot
- Bit Depth 24-bit
- Sample Rate 44.1 kHz
- Signal-To-Noise Ratio 110dB, A-weighted
- Maximum Recording Time 230 seconds per song part — based on a minimum 50 BPM and 48 bars per part
- USB Type Mini-B
- SD Card Type microSDHC, Class 10
- SD Min/Max Storage Size 8 GB/32 GB
- Power Requirements 9 VDC external power adapter
- Power Consumption 7.2 W
- Current Draw 800 mA
- Dimensions
- Length 5.4"
- Width 4.25"
- Height 2.5"
- Weight 1.46 lbs.
- Audio Output
- Amp Output Type Unbalanced, 1/4" TS
- Amp Output Impedance 1 kO
- Mixer Output Type Unbalanced, 1/4" TS
- Mixer Output Impedance 1 kO
- FX Send Output Type Unbalanced, 1/4" TS
- FX Send Impedance 1 kO
- Headphone Output Type 1/8" (3.5 mm) Stereo Mini Jack
- Headphone Output Impedance 120 O
- Audio Input
- Guitar Input Type Unbalanced, 1/4" TS
- Guitar Input Impedance 1 MO
- FX Return Input Type Unbalanced, 1/4" TS
- FX Return Impedance 1 MO
- Control Input Type 1/4" TRS (compatible with DigiTech FS3X)
